此類攪拌機多用于加藥反應裝置，選型方法可參考槳式攪拌機，實際應用中一般容器小于3噸的機架可以選配。

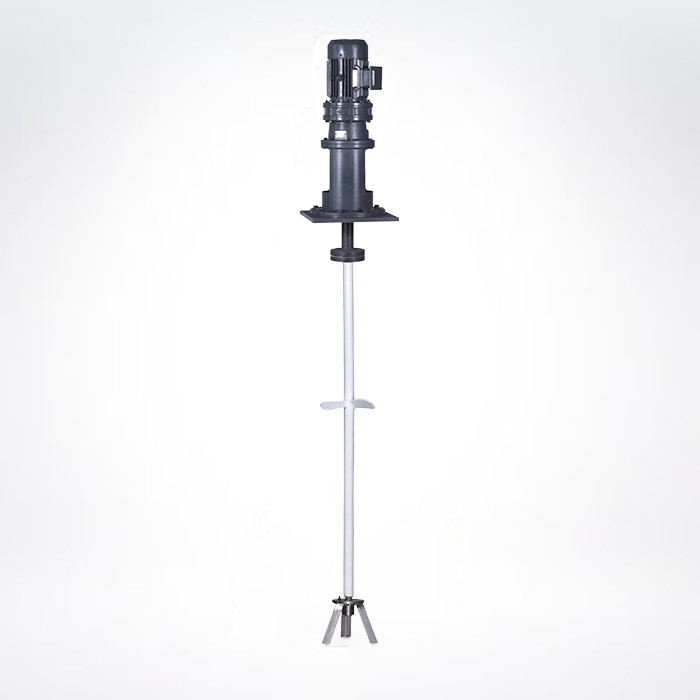

推進式攪拌器是常用整體鑄造或焊接壓制而成，加工方便，結構類似輪船的螺旋槳推進器，常用三片槳葉構成，俗稱螺旋槳攪拌器。

推進式攪拌器選型一般直徑取容器內徑的1/4-1/3，切向線速度可達5-15m/s，轉速一般為80-600r/min，最高轉速可達1750r/min，-般說小直徑取高轉速，大直徑取低轉速。攪拌時能使所有物料在容器內循環流動，所起的作用以容積循環為主，剪切作用小，上下翻騰效果好，當采用擋板或?qū)Я魍矂t軸向循環更好。

英文

The mixer is mostly used for chemical feeding and reaction devices. As for the method for model selection, we can refer to that of the paddle mixer. In practical application, usually, a rack with a vessel less than 3 tons can be selected.

The propeller mixer is casted and welded as a whole and is easy to process. Its structure is similar to the propeller of a ship. It usually consists of three blades. The national standard for three-blade propeller mixers which are commonly known as propeller mixers is HG5- 222-65 in China.

As for model selection of propeller mixers, usually their diameters are 1/4 to 1/3 of the inner diameters of containers, their velocity can reach 5-15m/s, usually the rotation velocity is 80-600r/min,tangential linear velocity can reach 5-15m/s, usually the rotation velocity is 80-600r/min,the highest velocity can reach 1750r/min, usually the minor diameter uses the high rotation velocity and the major diameter uses the low velocity. The propeller mix can make all materials realize circular movements in the container. Its main function is volume circulation. The shearing action is small. The effect of up and down movements is good.If a bafle plate or guide cylinder is used, the axial circulation is better.

高排液量，低剪切性能，循環能力強，動力消耗低。

推進式攪拌器在低粘度、大容量均相、混合過程最能體現它節能的優勢。

英文

High liquid discharge, low shear performance, strong cycle capability and low power consumption.

The push-type agitator can best reflect its energy-saving advantages in the low-viscosity, large -capacity homogeneous phase and mixing process.
